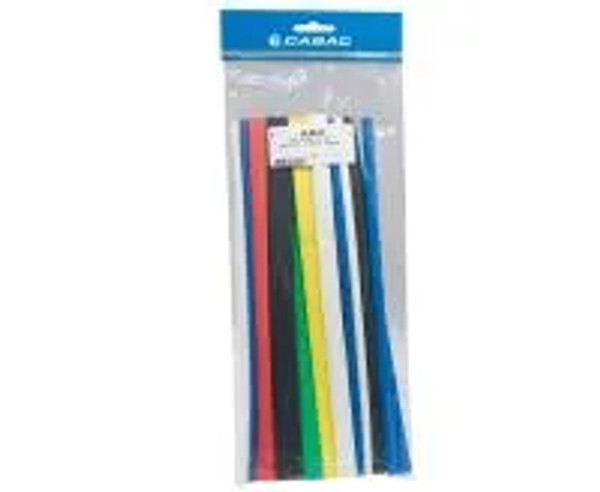

CABAC Multi Size/Colour Insulation Heat Shrink Pack - 22 Piece - XLPKIT

Features:

• XLP tubing is a chemically cross-linked tubing that conforms to MIL-1-23053/5 class 3. It will withstand -75°C to 135°C for normal operating conditions and 200°C for short intervals. Black tubing withstands ultraviolet radiation. Tubing can easily be shrunk with a heat gun or a heat tunnel (Part No. HG2000 or HG2000C).
• XLP Heatshrink Thin Wall Features • Highly flexible • Flame retardant • Abrasion and impact resistant • For use in all electrical and electronic applications • In-house cutting facility available for cut sleeves • Full range 1.5mm to 125mm diameter with 2:1 shrink • Available in most colours on reels or 4ft (1.2m) lengths • Full range is UV stabilised

Technical Specifications:

• Technical Data Compliant Standards: UL224 VW1 File No. E197423 Conformant Standards: MIL-1-23053/5; JIS Material: Chemically, cross-linked, thermally stabilised flame retardant polyolefin Continuous operating temp: -75°C to +135°C Shrinkage temp: > 100°C Longitudinal shrinkage: < 5% Tensile strength: 16 MPa Breakdown voltage: 25 kV/mm wall thickness Volume resistivity: 1.0 x 1014 ohm cm Elongation at break point: 400% Water absorption: 0.15% max Flammability: Passed ASTM-D-2671 UV stability: All tubing is stable Voltage rating: 600V
• KIT Contents: ItemDescriptionLength (mm)Qty XLP3RD3.5mm Thin Wall Shrinks to 1.6mm Red2901 XLP3WH3.5mm Thin Wall Shrinks to 1.6mm White2901 XLP3BL3.5mm Thin Wall Shrinks to 1.6mm Blue2901 XLP3BK3.5mm Thin Wall Shrinks to 1.6mm Black2901 XLP5RD5mm Thin Wall Shrinks to 2.4mm Red2901 XLP5WH5mm Thin Wall Shrinks to 2.4mm White2901 XLP5BL5mm Thin Wall Shrinks to 2.4mm Blue2901 XLP5BK5mm Thin Wall Shrinks to 2.4mm Black2901 XLP7RD7mm Thin Wall Shrinks to 3.2mm Red2901 XLP7WH7mm Thin Wall Shrinks to 3.2mm White2901 XLP7BL7mm Thin Wall Shrinks to 3.2mm Blue2901 XLP7BK7mm Thin Wall Shrinks to 3.2mm Black2901 XLP10RD10mm Thin Wall Shrinks to 4.8mm Red2901 XLP10WH10mm Thin Wall Shrinks to 4.8mm White2901 XLP10BL10mm Thin Wall Shrinks to 4.8mm Blue2901 XLP10BK10mm Thin Wall Shrinks to 4.8mm Black2901 XLP13RD13mm Thin Wall Shrinks to 6.4mm Red2901 XLP13WH13mm Thin Wall Shrinks to 6.4mm White2901 XLP13BL13mm Thin Wall Shrinks to 6.4mm Blue2901 XLP13BK13mm Thin Wall Shrinks to 6.4mm Black2901 XLP10G10mm Thin Wall Shrinks to 4.8mm Green2901 XLP13Y13mm Thin Wall Shrinks to 6.4mm Yellow2901
• XLP tubing is a chemically cross-linked tubing that conforms to MIL-1-23053/5 class 3. It will withstand -75°C to 135°C for normal operating conditions and 200°C for short intervals. Black tubing withstands ultraviolet radiation. Tubing can easily be shrunk with a heat gun or a heat tunnel (Part No. HG2000 or HG2000C).

Inclusionss:

• 1 x CABAC Multi Size/Colour Insulation Heat Shrink Pack - 22 Piece - XLPKIT
