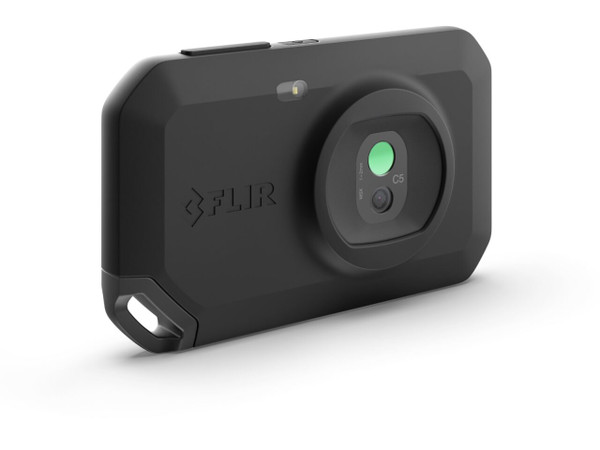

Flir Infrared Camera C5 Compact - 89401-0202

Features

• With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 × 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.
• Find and troubleshoot: Quickly find hidden faults and reduce diagnostic time thanks to MSX, 160 × 120 true thermal imaging, and 1-Touch Level/Span
• Document and share: Directly upload images using FLIR Ignite cloud connectivity, then create professional reports and email them to customers
• Rugged, reliable, compact: Take the pocket-portable C5 with you to every job - it's IP54 rated for protection against water and dust and designed to withstand a 2 m drop
• MSX® With MSX Instantly recognize the location of a temperature issue with FLIR-patented MSX (Multi-Spectral Dynamic Imaging). MSX extracts the edges from the built-in visual camera merging them into the thermal image

Specifications

• Thermal imaging resolution: 160 × 120 pixels
• Visual camera resolution: 5 megapixels
• Frame rate: 8.7 Hz for real-time thermal capture
• Focus system: fixed-focus lens for effortless operation
• Minimum focus distance: 0.1 m for thermal; 0.3 m for MSX overlay
• Measurement accuracy: ±3°C (±5.5°F) from 0°C to 100°C, and ±3% from 100°C to 400°C when ambient temperature is between 15°C to 35°C
• Thermal sensitivity: less than 70 mK
• Temperature detection range: –20°C to 400°C (–4°F to 752°F)
• Spectral response: 8 to 14 µm for thermal readings
• Image modes supported: infrared, visual, MSX (with embossed detail), and picture-in-picture
• Color palette options: iron, gray, rainbow, arctic, lava, and rainbow HC
• Measurement calibration includes emissivity presets (matt, semi-matt, semi-gloss) with custom values, plus reflected temperature and atmospheric adjustments
• Internal image storage with FLIR Ignite cloud support via Wi-Fi
• Power supply: built-in rechargeable lithium-ion battery
• Runtime per charge: up to 4 hours
• Charging setup: USB-C input (1 A), takes approximately 2 hours
• External power compatibility: 5 V via USB-C connection
• Display: capacitive touchscreen interface for easy navigation
• Durability: drop-tested to 2 meters
• Environmental protection: IP54 rating for lens and housing (dust and splash resistance)
• Operating conditions: –10°C to 50°C (14°F to 122°F)
• Storage conditions: –40°C to 70°C (–40°F to 158°F)

Inclusions

• pouch
• charging cable
