Description

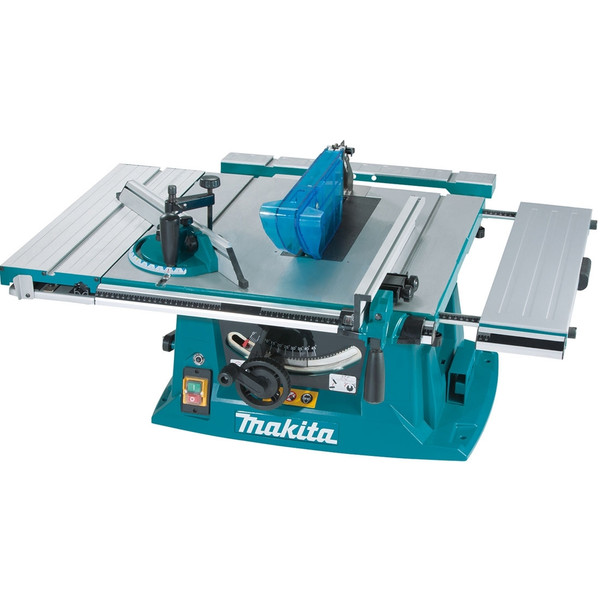

This table saw is designed to suit the needs of carpenters, builders, wood-working and cabinet makers. The re-design guard complies with industry standards improving safety. The trolley in the picture is not included
Features:
- Blade guard – newly designed blade guard for reduced kickback and top guard to prevent feeding of over-capacity workpieces
- Bevel Cutting – easily adjust the bevel angle by loosening the lock lever and turning the handwheel until the desired angle is obtained, indicated by the arrow pointer
- Mitre gauge – simply loosen knob on the gauge and align to desired angle (0° to 60°)
- On-tool storage – Push stick, triangular rule, saw blade and wrenches can be stored on the left hand side of the base. Rip fence and mitre gauge can be stored on the right hand side of the base
- Extension table – extendable sub table on the right hand side and rear of saw by loosening screws and adjusting to the desired length
Specifications:
Bevel Cutting Capacity: | 0 - 45° |
Blade Diameter: | 260mm (10-1/4") |
Continuous rating input: | 1,500W |
Max. cutting capacities at 0°: | 93mm |
Max. cutting capacities at 45°: | 64mm |
Net Weight: | 34.8kg |
No Load Speed: | 4,300rpm |
Overall Length: | 726mm |
Power supply cord: | 2.0m |
RHS max. rip / LHS max. rip: | 630mm / 530mm |
