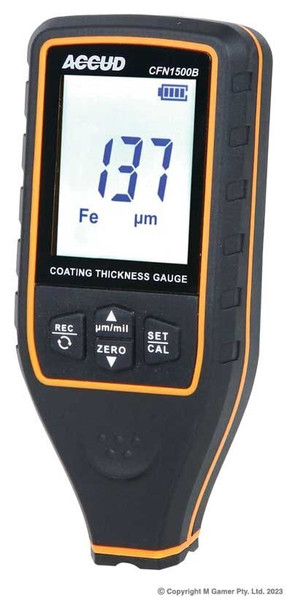

Accud Coating Thickness Gauge Fn Type 1500um - AC-CFN1500B

Features

• Integrated Ferrous and Non Ferrous probe
• Ferrous probe is used to measure the thickness of non-magnetic coatings (zinc, copper, enamel, plastic and so on) on magnetic subtracts (iron, steel)
• Non Ferrous probe is used to measure the thickness of non-conductive coatings (varnish ,enamel, plastic and so on) on conductive subtracts (zinc, copper, aluminum)
• V-type probe for cylindrical work pieces
• Um/mil unit conversion
• Automatic power on/ off
• Back light

Specifications

• Range: 0-1500µm
• Resolution: 0.1µm (0-99.9µm) / 1µm (100-1500µm)
• Accuracy: 2µm (0-100µm / 3%(100-1500µm)
• Memory: 30 sets
• Power supply: AAA batteries
• Dimensions: 120×52×26mm
• Weight: 170g
• Min. measuring area: 25×25mm
• Min. curvature: convexity: 5mm; concave: 30mm
• Min substrate thickness: magnetic material: 0.2mm; non magnetic material: 0.05mm
• Made in China
• Warranty: 12 months
