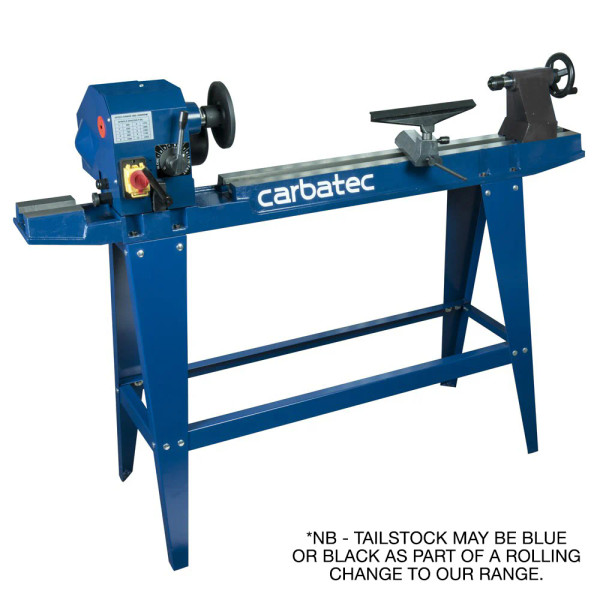

CARBATEC Lathe Bed 900 MM - WL-900H

FEATURES:

Perfect for the beginning or budget-conscious woodturner. The speed on this entry-level floor model is variable via a split pulley system that allows the spindle to run between 500 to 2,000 rpm. While the motor is running, turn the handle, allowing the pulleys to separate giving a different belt ratio, therefore changing the speed of the spindle. This is done easily and is an economical way to produce variable speed.

The headstock can be rotated an impressive 360 degrees, with 4 locking positions, allowing outboard turning. The cast iron bed has a smooth ground surface allowing the banjo and tailstock to move easily along its length. For outboard turning you will need to reposition the banjo and tool rest accordingly. Both the headstock and tailstock have a No. 2 morse taper, allowing popular turning accessories to be used.

This unit also includes pressed metal legs with pressed metal tool tray, 300 mm tool rest with two piece articulated banjo, face plate, drive centre, revolving (live) centre and hollow tailstock. All the kit you need to get started in the rewarding hobby of woodturning. A reliable motor is supplied with alloy-constructed cooling fins to provide cooler running. *NB - Tailstock may be supplied in Blue or Black as we make a rolling change to our lathe range.

• 3/4HP induction motor
• Split pulley system produces variable speed range
• MT2 morse taper
• M30 x 3. 5 spindle thread
• 10 mm hole through headstock
• *NB - Tailstock may be supplied in Blue or Black as we make a rolling change to our lathe range.

SPECS:

• Distance Between Centres: 840 mm
• Headstock and Tailstock Hole Diameter: 9 mm
• Headstock Movement: Swivel / locking
• Index Positions: None
• Morse Taper Type: MT2
• Motor: 550W (3/4HP) Induction – 10A Plug
• Nett Weight: 80 kg
• Shipping Weight: 85 kg
• Speed Range RPM: 500 – 2000 rpm
• Spindle Size or Bore: M30 × 3.5
• Swing Over Capacity: 300 mm (12"")
• Tool Post Diameter: 25 mm
• Volume: 1600 × 400 × 1120 mm
• Warranty: 1 year
• Made in China
