Description
Features

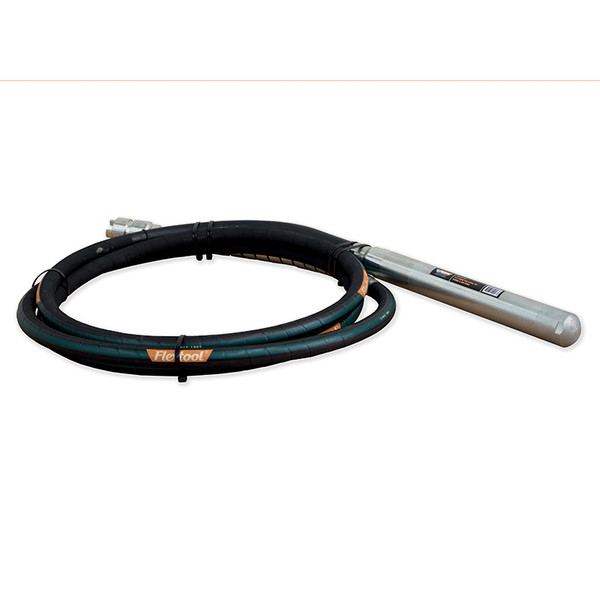

- Australia’s original series of immersion concrete vibrators produce high-frequency vibration, which allows for the efficient compaction of all types of concrete mixes. The resilient rubber nose caps extend the life of form boards and improves off-the-form finishes. The Flextool Flexshaft Concrete Vibrator FVP Rubber Tip comes in a range of four different flexshaft length and vibrator head diameter combinations, making it an ideal choice for a wide variety of concreting projects. Operator safety and comfort are optimised with the rubber support sleeve and vibration counter spring. The FVP series offers triple bearing technology and double oil seal protection for optimum performance and longer service life. The Flextool Flexshaft Concrete Vibrator FVP Series is also available with a steel tip vibrating head.
- Heat-treated nose cap and rotor reduces wear and tear from abrasive concrete aggregates
- Resilient rubber nose caps extend the life of form boards and improves off-the-form finishes
- Heavy-duty double row self-aligning bearing extends the concrete vibrator’s service life
- Vibration counter spring reduces vibration transfer to the operator, improving safety and comfort in the process
- Two sealed bearings for isolation of load transfer, resulting in improved durability
- Heavy rotor for high vibration amplitude ensures great efficiency
- Double oil seal protection reduces the need for ongoing maintenance
- Flexshaft rubber support sleeve enables easy clean-up and reduces heat transfer to the operator, which results in improved safety and comfort, as well as eliminating the hook-up on tie wire and reinforcing steel
Specifications
- Model: FVP40-9
- Nose cap type: Steel
- Vibrator head diameter: 38 mm
- Flexshaft length: 9 m
- Operating weight: 26 kg
- Shaft inner core diameter: 12 mm
- Shaft casing diameter: 32 mm
- Vibration frequency: 12,300 vpm
- Vibration frequency: 205 Hz
- Amplitude in air: 1.7 mm
- Warranty: 12 Months
- Made in China
