Description
Please note: This product will be ordered in once purchased. Supplier lead times will vary, but you can expect your item to be delivered to store for dispatch/pick up in 7 - 14 business days from date of purchase.
Features:
- Graphical wire map, length, cable ID, & distance to fault
- MicroScanner² cable tester, punch down tool, tone generator & probe
- Tone generator produces 500 kHz digital & 400 kHz & 1 kHz analog tones
- SimpliFiber® Pro multimode light source measures power & loss using dual wavelength testing
- Verifies media services: 10/100/1000 Ethernet, POTS, & PoE
Technical Specifications
- Test connectors: Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. MicroScanner2: F-connector for coaxial cable.
- Power: Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteriesBattery life: 20 hours of typical use
Other compatible battery types: 2 AA photo lithium, NIMH, NICAD - Dimensions and weight (with batteries installed and wiremap adapter attached): 3 in x 6.4in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) MicroScanner2: 10.6 oz (300 g) MicroScanner PoE: 10.6 oz (300 g)
- Display: Monochrome LCD with backlight
Inclusions:

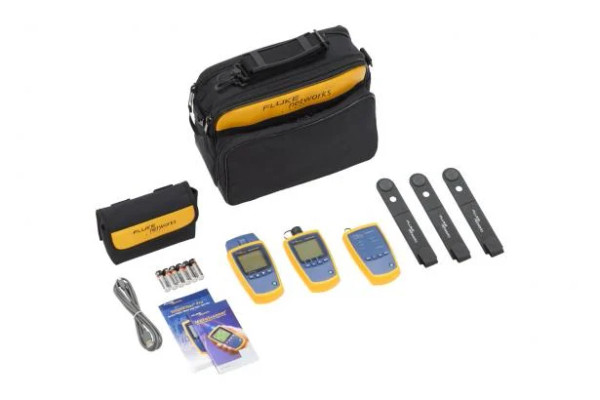

- 1 x Fluke Copper And Fiber Tester Kit - FLUMS2-FTK
