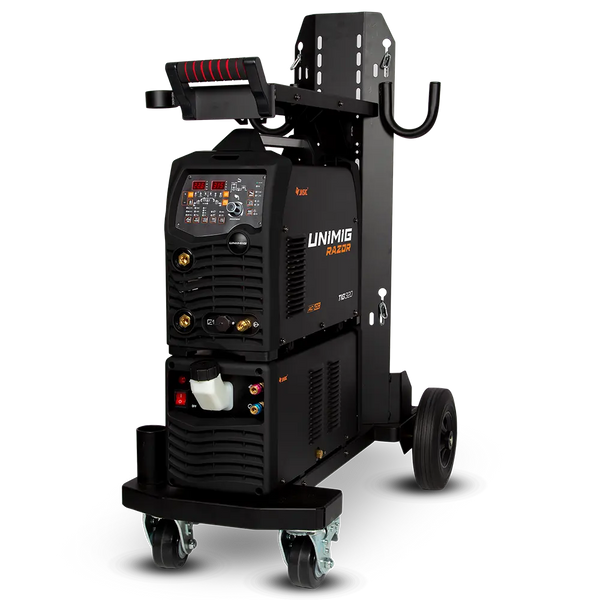

Unimig RAZOR 320 AC/DC Tig Welder with Water Cooler - U12009

Features:

• Bundle with Welder, Water Cooled TIG Torch and Water Cooler Trolley
• Pulse TIG Function
• AC TIG Waveforms
• 2T/4T Torch Modes
• Mixed Arc AC/DC
• Foot Control Ready
• 2T/4T Torch Modes
• Remote Control Module

Technical Specifications:

• PRIMARY INPUT VOLTAGE: 415V Three Phase SUPPLY PLUG: No plug supplied (20 AMP Recommended) RATED INPUT POWER (kVA): 9 Ieff (A): 10 RATED OUTPUT: 5-315A NO LOAD VOLTAGE (V): 9-73 PROTECTION CLASS: IP21S INSULATION CLASS: F POWER FACTOR: 0.7 MINIMUM GENERATOR (kVA): 10 DINSE CONNECTOR: 35/50 STANDARD: AS/NZ60974-1, AS/NZ60974-10 WELDS: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper, Aluminium, Zinc Alloys WARRANTY (Years): 3 TIG FUNCTION TYPE: AC/DC HF TIG & AC/DC Pulse TIG WELDING CURRENT RANGE: 5-315A TIG DUTY CYCLE @ 40°C: 30% @ 315A TIG WELDING THICKNESS RANGE: 1-16mm STICK WELDING CURRENT RANGE: 10-270A STICK DUTY CYCLE @ 40°C: 30% @ 270A STICK ELECTRODE RANGE: 2.5-4.0mm STICK WELDING THICKNESS RANGE: 2-16mm ARC FORCE: 0-40 DIMENSIONS (mm): 566x223.5x405mm WEIGHT (kg): 25.5kg VRD: Yes FOOT CONTROL CONNECTION: UTJRFC-4 CRATER CURRENT CONTROL: Yes THERMAL OVERLOAD PROTECTION: Over Temperature Warning

Inclusions:

• RAZOR 320 AC/DC TIG Welder (KUMJRRW320ACDC)
• 4m T3W Water-Cooled TIG Torch (T3W-3KHL-4M)
• RAZOR 320 AC/DC Water Cooler (JRTIG320TROLLEY)
