Description
Features:
- 15 AMP Plug
- Lift Arc DC TIG
- Hot Start
- Arc Force
Technical Specifications:
- PRIMARY INPUT VOLTAGE: 240V Single Phase
- SUPPLY PLUG: 15 AMP Ieff (A): 14.7
- RATED OUTPUT: 20A/20.8V - 180A/27.2V
- NO LOAD VOLTAGE (V): 78
- PROTECTION CLASS: IP23S
- INSULATION CLASS: H
- MINIMUM GENERATOR (kVA): 10
- DINSE CONNECTOR: 35/50
- STANDARD: AS/NZ60974-1
- WELDS: MMA: Mild Steel, Stainless Steel, Cast Iron
- TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
- WARRANTY (Years): 5
- TIG FUNCTION TYPE: DC Lift Arc
- TIG WELDING CURRENT RANGE: 10-180A
- TIG DUTY CYCLE @ 40°C: 25% @ 180A 60% @ 116A 100% @ 90A
- TIG WELDING THICKNESS RANGE: 1-6mm
- STICK WELDING CURRENT RANGE: 20-180A
- STICK DUTY CYCLE @ 40°C: 20% @ 180A 60% @ 104A 100% @ 81A
- STICK ELECTRODE RANGE: 2.5-4.0mm
- STICK WELDING THICKNESS RANGE: 2-10mm
- DIMENSIONS (mm): 370×125×255 mm
- WEIGHT (kg): 5.8kg
Inclusions:

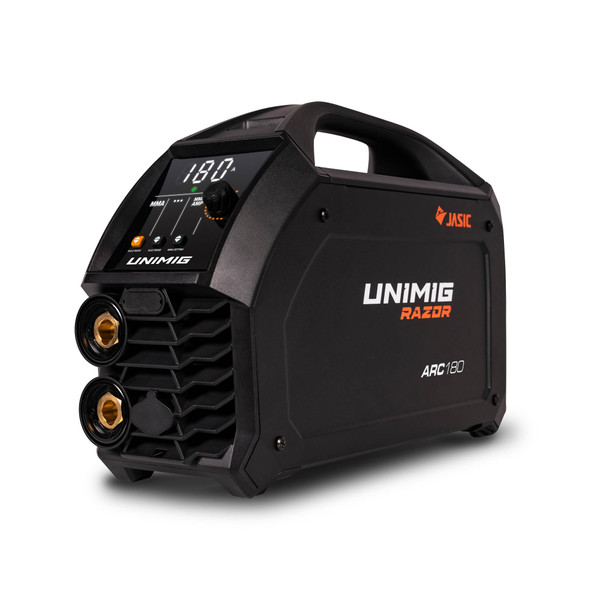

- RAZOR ARC 180 Welder
- 4m Twist Lock Electrode Holder
- 4m 300 Amp Earth Clamp & Lead
- Operating Manual
Specifications
- Battery Voltage: 18V
