Cigweld BlueVenom XF186 Power Pack - PPXF186C24

Features:

• Multi Process Stick MIG, Stick & DC TIG
• VRD Fitted
• Plate Thickness Feature
• QuickSet, simple to set & weld
• MIG Gasless and MIG Gas Shielded
• Spool Gun compatible, great for Aluminium (sold separately)
• Blue LED metres for clear viewing
• Suitable for 100mm and 200mm Diameter Spools
• Recommended MIG & TIG welding thickness range 0.6mm – 10mm
• Recommended STICK welding thickness range 1.6mm – 12mm

Technical Specifications:

• Power Supply (Voltage)
• Single-Phase 230V/240V +/- 15%
• Australian StanAustralian Standard: AS 60974.1:2020dard Nominal
• Supply Frequency 50/60Hz Supply Lead and Plug supplied 10 Amp Minimum Single Phase Generator
• Recommendation: 10kVA (at 0.8 Power Factor) at Max Amps Amperage Range: 30-186A (MIG)
• MIG (GMAW) Duty Cycle @ 40°C, 10 minutes
• 185 Amps @ 9%
• 72 Amps @ 60%
• 56 Amps @ 100%
• STICK (mmAW) Duty Cycle @ 40°C, 10 minutes: 160 Amps @ 10% 65 Amps @
• 60% 50 Amps @ 100% "TIG (GTAW) Duty Cycle @ 40°C, 10 minutes
• 186 Amps @ 10%
• 76 Amps @ 60%
• 59 Amps @ 100%
• Protection Class: IP21S

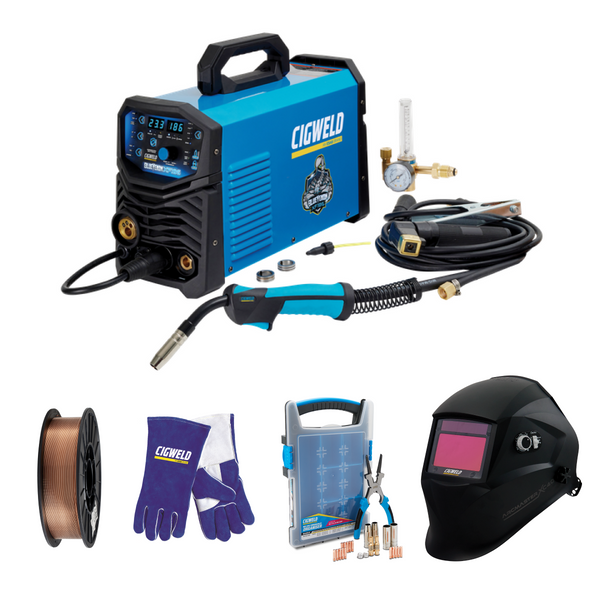

Inclsuions:

• W1400186 - BlueVenom XF186 MIG/Stick/TIG Plant
• WHAMXC040 - Arcmaster XC40 BLAX Auto-Darkening Helmet
• W4012303 - MIG Front End Kit Box
• BZL-15LH with MIG Pliers
• WS0509 - Weldskill LWI Solid MIG Wire o.9mm/5kg
• 646755 - H/D Welding Gloves Leather & Kevlar stitched - LARGE
