Description
Features

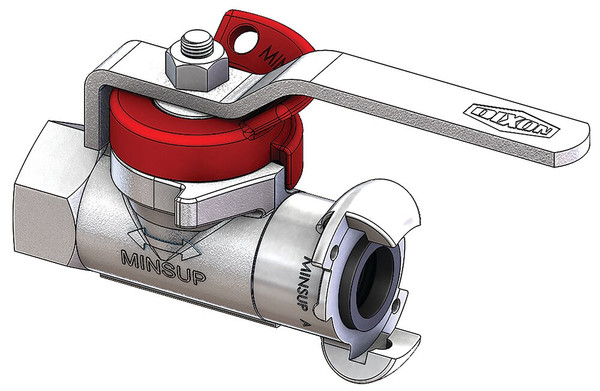

- Solid Construction with unique single piece ball and stem provides positive on/off action
- Inline maintenance is easy for the top loading 3/4" and 1" range and the 3 piece, 11/2" and 2" range
- Temperature Range: -20DegC to +80DegC, Seats and trim material: NBR
- Bolts: Hex, M10 x 1.5 x 90, Grade 8.8 Black
- Nuts: Hex, M10 x 1.5, Grade 8
- Zinc Plated, Body - SG Iron ISO 1083; 400-250-15
- Zinc Plated AS1789, Spheroidal graphite cast iron to ISO 1083 (1½" - 2")
- All other sizes have pressed mild steel handles
- Ball & Stem - SG Iron ISO 1083; 400-250-15 & copper chrome plated to AS1192
Applications
- Suitable For Air And Water Applications
- Suitable For The Mining And Construction Industries
- Suitable as a General Purpose Ball valve for Mining or Industrial Applications
