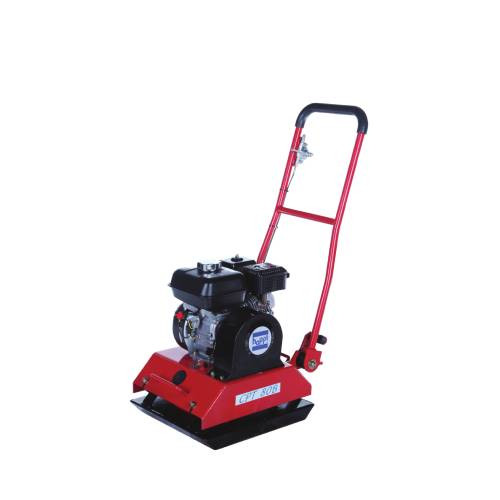

Hoppt Plate Compactor 80kg Honda GX160 - CPT80B-L

Features

• OPERATOR-FRIENDLY DESIGN - Straight, centre-mounted guide handle can be lowered within centimetres of the surface to operate under obstacles and form work.
• EASY LIFTING - Mutliple lifting points and front lift cage offer easier loading and unloading for operator convenience.
• COMPACT & DURABLE - Compact design with a heavy-duty base plate for long service life and excellent results.
• SMOOTH & FLEXIBLE - Delivers smooth vibration and high compaction efficiency on a variety of surfaces.
• EASY OPERATION - Throttle mounted on the operating handle for quick and convenient speed control.

Specifications

• MODEL - CPT80B-L
• MACHINE DIMENSION (L x W x H) (mm) 860 x 440 x 930
• OPERATING WEIGHT (kg) 86
• PLATE SIZE (L x W) (mm) - 490 x 440
• VIBRATING FREQUENCY - Hz (vpm) - 94 (5,640)
• CENTRIFUGAL FORCE - kgf (kN) - 1,530 (15.0)
• COMPACTION AREA (m2/hr) - 520 - 550
• COMPACTION DEPTH (mm) - 250
• MAXIMUM GRADEABILITY (degree) - 20
• MAXIMUM WORKING SPEED (m/min) - 25
• Country of Origin: China
• Warranty: 2 years

Inclusions

• ENGINE Honda GX160 3.6 kW (4.8 hp)
