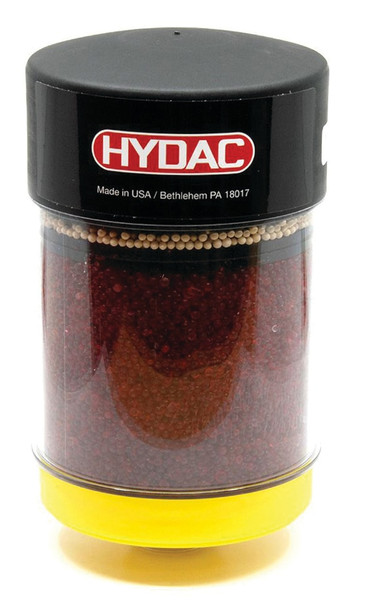

HYDAC 1299654 Desiccant Breather - BDE 400 x 2 W 0.0

Features

• 2-Stage Adsorbent Filling
• Distribution of Flow by special design of the inner components
• Star-pleated air filter element (2 µm) reduces/prevents dirt and dust ingress into tank
• Integrated anti-splash tool to protect the absorbent from oil contamination
• Replacement Cartridges
• Optional visual indicator
• Safety sealed for a long storage time ~ 3 years
• Zinc die-casting connection

Applications

• The breather dryer cartridges contain silica gel (orange) which, once at complete saturation, is impossible to regenerate.
• A durable contamination filter above and below the silica gel prevents contamination from penetrating inside the cartridge
• Indeed, the particle filtration > 2 µm nominal. Therefore, this ensures optimum humidity absorption
• Moreover, to guarantee the performance of the protective filter layers, it's imperative to replace the entire cartridge
• What's more, when a change of the filter is due, the colour changes from orange to green
• On the other hand, filling/breather filters from HYDAC prevent contamination and water from entering the system
• It is essential, as the system is usually in connection with fluctuations of the oil level in the tank (tank breathing)

Specifications

• Filter Type : BDE- Desiccant Breather
• Size : 400
• Type of Connection : Replacement Cartridge
• Filtration Rating : 2 µm absolute
• Clogging Indicator : Without port, no clogging indicator
• Type Code/Connection Type : Replacement Cartridge
• Modification Number : 0
• Color Indication: When maximum adsorption is reached, the silica gel turns from purple to orange
• Tank mounting filter
• For separation of solid particles and water
• Throughput volume up to 15,000 l/min (with Dp=0.01 bar)
• Optional - lockable - anti-splash protection - counterbalance valve - an anti-droplet device
