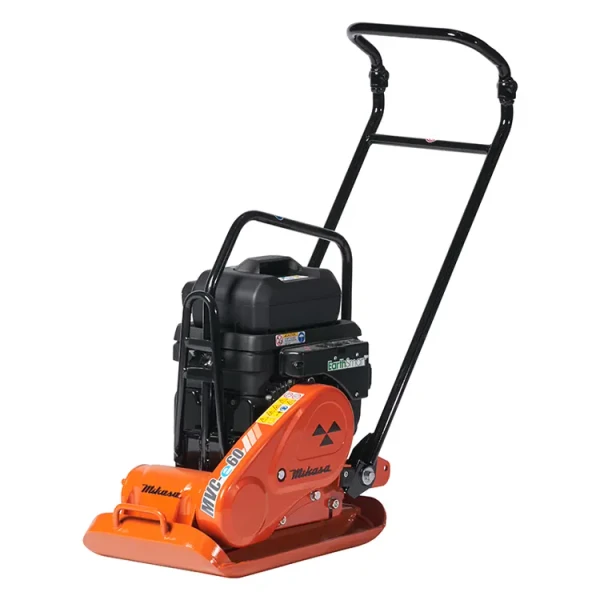

Mikasa Forward Plate Compactor MVC-E60 Honda Battery 80 KG - FT272788-UNIT

Features

• Mikasa Forward Plate Compactors set the standard for the compaction of sub-bases and asphalt. Mikasa Forward Plate Compactors offer superior build quality and excellent performance. They are also highly portable, easily manoeuvrable and deliver excellent compaction results. Mikasa's battery powered compaction equipment range features a Honda eGX-Series electric motor which is powered by an interchangeable lithium-ion battery pack, capable of rapidly charging to 80% capacity in only 60 minutes.
• These zero emission and reduced noise level machines are a great alternative to the engine powered equivalents, especially when operating in noise and fume restricted environments.
• Vibration Absorbing System for reduced hand and arm vibration transfer to the operator
• Easy access start and stop switch and LED indicators
• Sealed clutch and belt guard protects against the ingress of dust and other unwanted materials that can prematurely wear out critical clutch component and V-belt
• Optional clip-on water tank for suppression of dust and asphalt works
• Central lifting hook for easy and safe onsite handling
• Honda eGX motor is a highly efficient, high-power 3 phase brushless DC motor for maximum performance and reliability
• Honda eGX 72 volt lithium-ion battery is quick charging and interchangeable with other Mikasa battery powered soil compaction equipment
• Honda eGX battery reaches 80% charge in 60 minutes and is fully charged in 90 minutes
• Zero operating emissions
• Low noise operation offers expanded work hours and usage in noise restricted areas
• Up to 35 minutes run time
• 3 Year Mikasa product warranty (body only)
• 2 Year Honda battery warranty

Specifications

• Model: MVC-e60
• Motor make and model: Honda GXE2.0H
• Rated Power Cont/Max: 1.6 / 2.4 kW
• Operating weight : 80 kg
• Shoe size (wxl) : 350 mm x 570 mm
• Vibration frequency: 5600 vpm / 93 Hz
• Centrifugal force max: 10.1 kN
• Max travel speed*: 25 m/min
• Max gradeability: 35%
• Max compacted area: 525 m2/h
• Lifting hook: Yes
• Wheel kit: No
• Water tank: Optional
• Average HAV: 2.4 m/s2
• Run time: up to 35 minutes * Travel speeds and compaction depths vary based on different soil conditions. Specifications published are based on average performance results.
• Battery type: Lithium-ion
• Battery capacity: 10 Ah
• Energy content: 748 Wh
• Battery weight: 6.4 kg
• Battery voltage: 72 V
• Battery charge time: 80% in 60 minutes, 100% in 90 minutes HONDA eGX
• Charger weight: 11.0 kg
• Charger voltage: 240 V / 10 A
