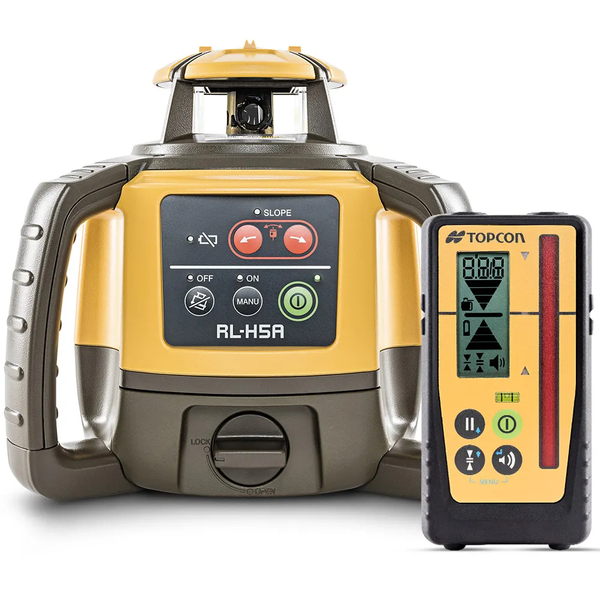

Topcon RL-H5A Rotating Laser Rechargeable Battery PREMIUM LS110D Receiver - 1021200-25

Key Features

• Designed for a wide variety of applications, the RL-H5 series is the next generation of rotating lasers from Topcon. The RL-H5A next generation self-levelling rotating laser is an easy-to-use, long-range high accuracy laser with a long battery life and all-weather dependability. With electronic self-leveling, you press the power button and go right to work in seconds. If the RL-H5A gets disturbed on the job it re-levels itself automatically. The self-leveling motors are accurate to ±10 arc seconds. The RL-H5A excels in long range operation. Need to shoot elevations up to 400m from your laser? No problem! This instrument has the power and range to cover a 800m (diameter) jobsite. This rotating laser level gives you the option of 100 hours of continuous usage with D cell (4 x) batteries (included), or 60 hours with the optional rechargeable (Ni-MH) battery pack. The RL-H5A is jobsite tough and with its IP66 rating, the unit can withstand dust, a sudden shower and even torrential rainfall. Topcon stands behind this reliable and accurate laser with a 5 year warranty.
• Working Range 800m
• Accuracy ±1.5mm @ 30m
• Manual grade change to 5%
• Dust/Water Rating IP66
• LS-110D Premium Receiver (mm)
• Rechargeable NIMH Battery
• 5 Year Warranty

Specifications

• Accuracy: H: ±10 arc seconds
• Self-Levelling Range: Horizontal ±5°
• Working Area: 800m
• Rotation Speed: 600 rpm
• Dust/Water Rating: IP66
• Operating Time: NIMH Rechargable (60 hours)
• Operating Temperature: -20°C to 50°C
• LS-110D Premium Receiver (±0.5,1,2,5,10 mm)
• Country of Origin: China

Inclusions

• Topcon RL-H5A Rotating Laser Leve
• Topcon LS-110D Premium Receiver (Millimeter)
• Topcon Receiver Clamp
• NIMH Rechargable battery & Charger
• Carry Case
• Operator Manual
• Australian Calibration Certificate

Warranty & Returns

• Warranty: 5 Years
