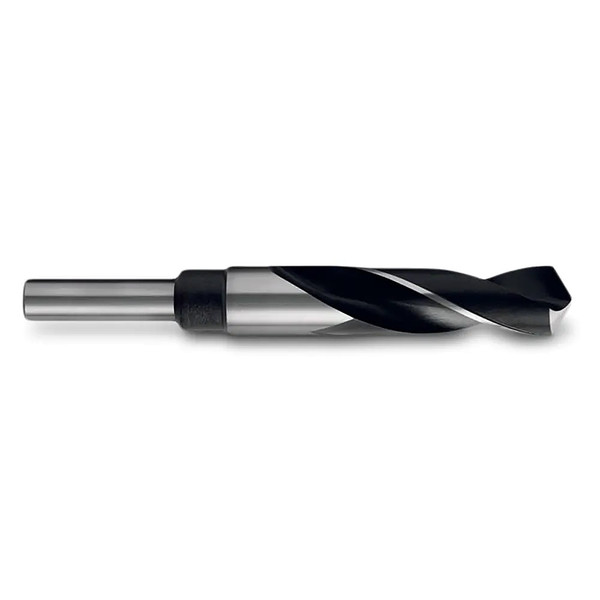

Sutton Drill Bit Reduced Shank Range - 17.0mm - D1881700

Features:

• Common Length 6" (152mm) overall length with a 3-3/8" (86mm) flute length
• Reduced shanks suit 13mm drill chucks
• 118° standard point for general purpose applications
• Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
• Blue surface finish for ferrous applications. The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels

Technical Data:

D1881350

• Diameter d1 (mm): 13.50
• Length l1 (mm): 152
• Length l2 (mm): 86
• Diameter d2 (mm): 12.70

D1881400

• Diameter d1 (mm): 14.00
• Length l1 (mm): 152
• Length l2 (mm): 86
• Diameter d2 (mm): 12.70

D1881450

• Diameter d1 (mm): 14.50
• Length l1 (mm): 152
• Length l2 (mm): 86
• Diameter d2 (mm): 12.70

D1881500

• Diameter d1 (mm): 15.00
• Length l1 (mm): 152
• Length l2 (mm): 86
• Diameter d2 (mm): 12.70

D1881600

• Diameter d1 (mm): 16.00
• Length l1 (mm): 152
• Length l2 (mm): 86
• Diameter d2 (mm): 12.70

D1881700

• Diameter d1 (mm): 17.00
• Length l1 (mm): 152
• Length l2 (mm): 86
• Diameter d2 (mm): 12.70

D1881800

• Diameter d1 (mm): 18.00
• Length l1 (mm): 152
• Length l2 (mm): 86
• Diameter d2 (mm): 12.70

D1881900

• Diameter d1 (mm): 19.00
• Length l1 (mm): 152
• Length l2 (mm): 86
• Diameter d2 (mm): 12.70

D1882000

• Diameter d1 (mm): 20.00
• Length l1 (mm): 152
• Length l2 (mm): 86
• Diameter d2 (mm): 12.70

D1882200

• Diameter d1 (mm): 22.00
• Length l1 (mm): 152
• Length l2 (mm): 86
• Diameter d2 (mm): 12.70

D1882500

• Diameter d1 (mm): 25.00
• Length l1 (mm): 152
• Length l2 (mm): 86
• Diameter d2 (mm): 12.70
