Features

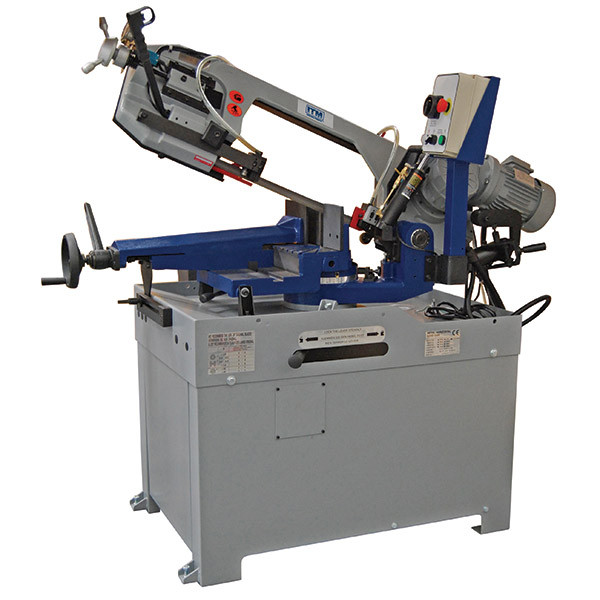

- 2-way swivel head enables from 0° to 60° mitre cuts
- Dual mode operation
- Trigger switch with manual down feed for small quick cuts
- Control panel with fully adjustable hydraulic down feed & automatic shut-off at end of cut, for cutting larger material
- Variable speed motor for cutting a wide range of materials
- Dual direction heavy-duty vice
- Hydraulic blade tension gauge
- Incorporated recirculating coolant system
- Brass chip brush to help prevent blade breakage
- Adjustable material stop for repetitive production
Specifications
- Motor: 2hp Three Phase (415V)
- Blade Speed: 2 Speed 36 / 72 mpm
- Blade Size: 27mm x 0.9mm x 2725mm
- Bed Height: 895mm
- Weight: 302kg
- 90° Cutting Capacity: Round: 240mm | Square: 235mm | Rectangle: 310 x 165mm
- 45° Right Cutting Capacity: Round: 195mm | Square: 185mm | Rectangle: 195 x 130mm
- 60° Right Cutting Capacity: Round: 120mm | Square: 85mm | Rectangle: 120 x 90mm
- 45° Left Cutting Capacity: Round: 165mm | Square: 140mm | Rectangle: 195 x 60mm
