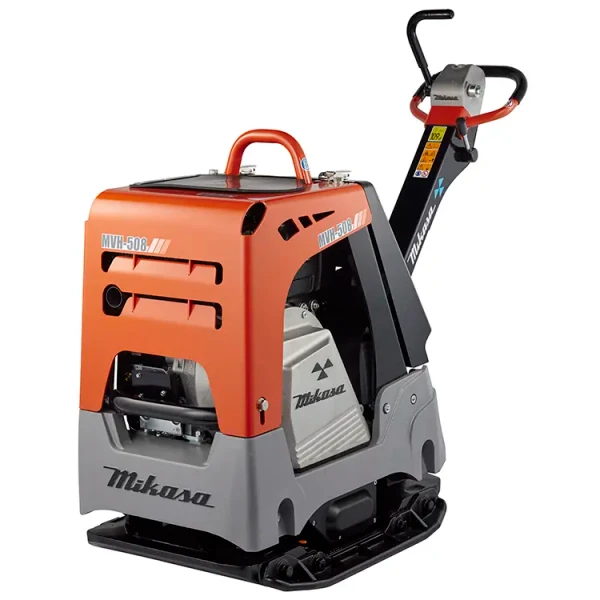

Mikasa Reversible Plate Compactor MVH-508DSZ Hatz 14.1 HP Diesel 525 KG - FT28DSZN-UNIT

Features

• The premium Mikasa Reversible Plate Compactors set the standard for efficient compaction of sand, gravel and cohesive soils.
• The Mikasa Reversible Plate Compactor MVH-508DSZ offers exceptional operator comfort and safety with features including a cyclonic air filtration system, seamless forward/reverse motions, engine tacho meter and anti-vibration and height adjustable handle.
• The robust, durable design and powerful Hatz 14.1 hp diesel engine, provide superior build quality and excellent compaction performance and results. The Mikasa Reversible Plate Compactor MVH-508DSZ is ideal for civil and commercial construction projects, drainage and trench works. -
• Engine hour meter and tachometer to efficiently manage service intervals and monitor rpm for optimum compaction performance
• The forward/reverse control lever comes with a built-in actuator for seamless and smooth transition between both forward and reverse motions
• Cyclonic air filtration system delivers superior air filtration to lengthen service internals and improve engine protection
• Anti-vibration handle provides low hand and arm vibration transfer to the operator
• Height adjustable handle for improved operator comfort
• Robust, full engine protection frame provides superior protection against engine damage and the hinge design simplifies maintenance by offering convenient access to all serviceable components
• The sealed clutch and belt guard protects against the ingress of dust and other unwanted materials that can prematurely wear out critical clutch component and V-belt
• Central lifting hook for easy and safe onsite handling
• Hatz 14.1 hp diesel engine with electric start provides powerful, hassle-free operation, low fuel consumption and long-term reliability
• Removable extension plates to easily adjust the width of the plate to match the job requirements
• 3 Year Mikasa product warranty

Specifications

• Model: MVH-508DSZ
• Engine and power: Hatz 1D81S 14.1 hp
• Fuel type: Diesel
• Operating weight (without extension plates): 525 kg
• Operating weight (with extension plates): 567 kg
• Plate size (without extension plates) (wxl) : 650 mm x 900 mm
• Plate size (with extension plates) (wxl) : 800 mm x 900 mm
• Centrifugal force (max): 65 kN
• Vibration frequency: 4150 vpm
• Max travel speed*: 29 m/min
• Max gradeability: 35%
• Max compacted area: 1392 m2/h
• Average HAV: 5.5 m/s2
• * Travel speeds vary based on different soil conditions. Specifications published are based on average performance results.
