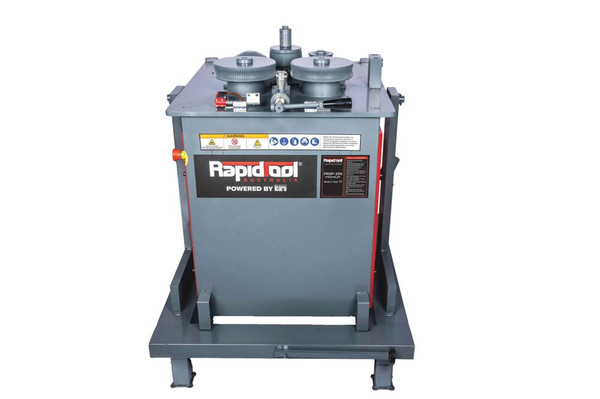

Description
Features
- Rotatable spiral table for vertical or horizontal production
- Direct off-coil feeding
- Fast, Clean Spirals - Ideal for high-volume production
- Remote-Mount Control Panel - Flexible positioning for safer, more efficient operation
- Spiral Bar Capacity - 6-16mm rebar (D500N)
- Ring Bar Capacity - 6-25mm rebar (D500N)
- Unlimited Maximum Diameter Capacity - large-diameter spiral + ring production
- Adjustable Spiral Diameter & Pitch - Flexible production for a wide range of spiral configurations
- Heavy-Duty Three-Phase Motor - Built for continuous, high-output performance
- Foot Pedal Control - Flexible, ergonomic, and operator-safe
- Industrial Frame - Maximum durability and long service life
- European Engineering, Local Support - Built for Australia with parts and full servicing in Australia
Specifications
- Heavy-duty drive system including heat-treated components, three-phase motor and dual-stage gearbox for unrivalled strength and efficient 6-16mm spiral and 6-25mm ring processing
- Spiral pitch range: 0-120mm
- Spiral - Ring diameter range: 6mm - 150mm - Unlimited,12mm - 250mm - Unlimited
- Rotation + bar feed speed: slow speed = 14RPM (9m), fast speed = 28RPM (18m)
- Rated Voltage and Frequency: 400-415V 3~ 50Hz
- 3.2 / 2.6 kW (High/Low)
- 7.6 / 6.2 A (High/Low)
- Number of Phases: 3
