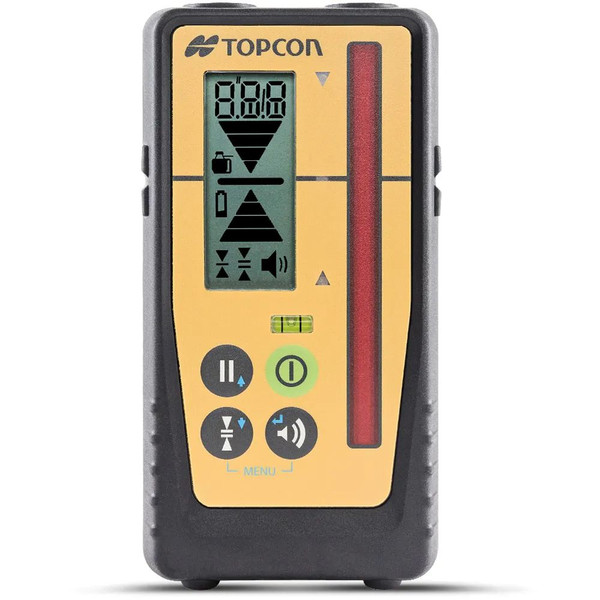

Topcon LS-110D Laser Receiver Including Holder 110 - 1091205-01

Key Features

• The LS-110D digital laser sensor is designed to increase speed and productivity on any job, by providing the perfect blend of operator-friendly technology and enhanced precision for elevation and vertical alignment control. The LS-110D Topcon receiver has 4 accuracy resolutions from ±0.5mm to ±10mm and a 90mm reception height for extra-wide beam capture sensor. This extra wide beam capture also has strobe-proof protection, so you can be confident you are getting an accurate and quick result.
• The LS-110D Topcon laser level receiver has strong magnets embedded for vertical and horizontal operation, which is ideal for steel erections or excavation grade checking. The LS-110D Topcon receiver also has a number of operator-friendly features, including bright and large LCD displays (front & back) which are readable even in strong sunlight. It also has three coloured LEDs and a hold button for locking the display to read elevation results. The LS-110D Topcon laser receiver is the ideal partner for the RL-SV2S, RL-H5A, or the RL-200 series.
• Working Range (diameter) Up to 800 m
• 90mm detection window
• Magnets for vertical steel erection
• Detective Precision ±0.5, ±1.0, ±2.0, ±5.0, ±10.0 mm
• 45 hour battery life
• 1 YR warranty

Specifications

• Vertical Detector Range—‹ 90mm
• Horizontal Detector Range —‹ ±45°
• Strobe Light Suppression —‹ Yes
• Detective Precision —‹ ±0.5mm —‹ ±1 mm —‹ ±1 mm —‹ ±2 mm —‹ ±5 mm —‹ ±10 mm
• Operating time —‹ Up to 45 hours
• Auto Shut off —‹ Approx. 30 minutes
• Dust/Water Rating —‹ IP67
• Operating temperature —‹ -20° to 50°
• Dimension (LxWxH) —‹ 134x69x25 mm
• Weight —‹0.19kg grams Magnet Mount -—‹ Two magnets on top
• Country of Origin: China

Inclusions

• LS-110D Laser Receiver
• Holder 110 Holder

Warranty & Returns

• Warranty: 1 Year
