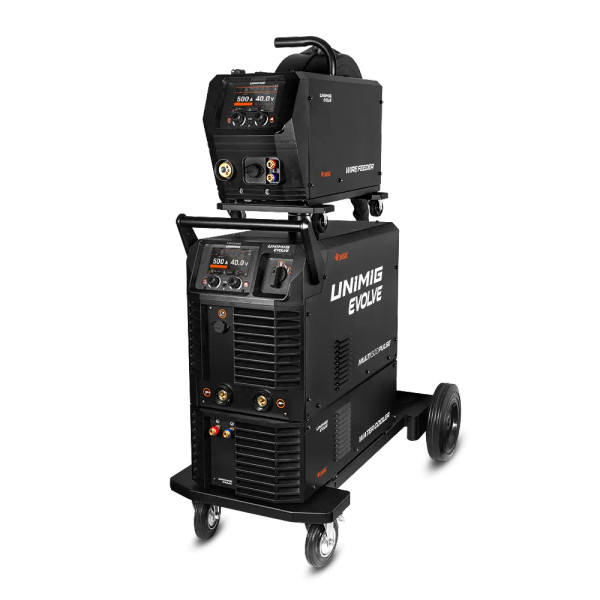

Unimig Evolve Multi 500 Welder - U11142

Features

• SINGLE & DOUBLE PULSE MIG
• 100+ SYNERGIC PROGRAMS
• 5” LCD TOUCH SCREEN
• DIGITAL MIG TORCH
• Power Factor Correction
• IP23S
• 4 Geared Wire Drive
• Push-Pull Gun Ready

Specifications

• PRIMARY INPUT VOLTAGE: 415V Three-Phase
• SUPPLY PLUG: 32A
• Ieff (A): 25.0
• RATED OUTPUT: 20-500A
• NO LOAD VOLTAGE (V): 80
• PROTECTION CLASS: IP23S
• INSULATION CLASS: H
• MINIMUM GENERATOR (kVA): 34
• DINSE CONNECTOR: 35/50
• STANDARD: AS 60974.1
• SUITABLE MATERIAL: MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze MMA: Mild Steel, Stainless Steel, Cast Iron
• MIG WELDING CURRENT RANGE: 20-500A
• MIG DUTY CYCLE @ 40°C: 60% @ 500A, 100% @ 400A
• MIG WIRE SIZE RANGE: 0.8-1.6mm
• MIG WIRE SPOOL SIZE: 5kg (200mm) / 15kg (300mm)
• MIG WELDING THICKNESS RANGE: 0.6-20mm (Single Pass) / >20mm (Multi Pass)
• DRIVE ROLLER SIZE: 30/22 (x2)
  STICK WELDING CURRENT RANGE: 60% @ 500A
• STICK DUTY CYCLE @ 40°C: 60% @ 500A, 100% @ 400A
• STICK ELECTRODE RANGE: 2.5-6.0mm
• STICK WELDING THICKNESS RANGE: 2-10mm (Single Pass) / >10mm (Multi Pass)
• STICK WELDING THICKNESS RANGE: 2-10mm (Single Pass) / >10mm (Multi Pass)
• Warranty: 5 years
• Made In China
