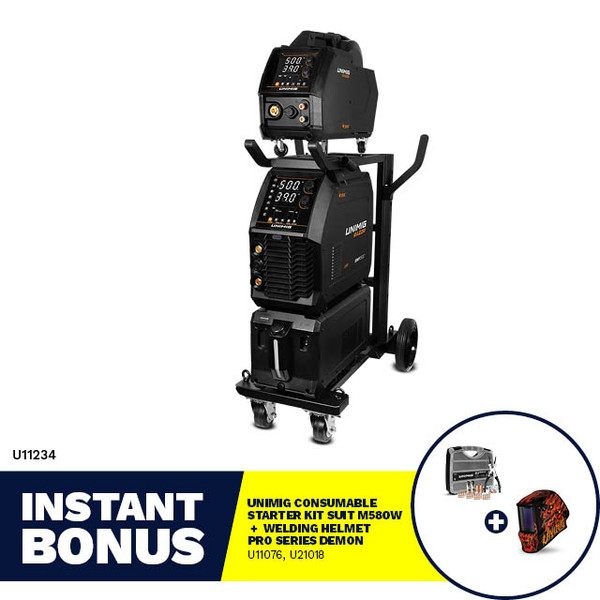

Unimig Razor SWF 500 Water Cooled Welder - U11234

SPECS:

• SKU: U11234 (Water-Cooled)
• Primary Input Voltage: 415V Three-Phase Supply Plug: Unplugged (32A Recommended)
• Ieff (A): 22.0
• Imax (A): 42.8
• Rated Output: 20 500A
• No Load Voltage (V): 82
• Protection Class: IP23S
• Insulation Class: H
• Minimum Generator (kVA): 40
• Dinse Connector: 35/50
• Standard: AS 60974.1
• Welds:
  • MIG - Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
  • MMA - Mild Steel, Stainless Steel, Cast Iron
  • TIG - Mild Steel, Stainless Steel, Copper, Silicon Bronze
  • Warranty: 5 Years
• MIG SPECIFICATIONS:
  • MIG Welding Current Range: 30 500A
  • MIG Duty Cycle @ 40 C: 40% @ 500A 60% @ 408A 100% @ 316A
  • MIG Wire Size Range: 0.8 1.6mm
  • MIG Wire Spool Size: 5kg (200mm), 15kg (300mm)
  • MIG Welding Thickness Range: 1 30mm
  • Drive Roller Size: 37/24
• TIG SPECIFICATIONS:
  • TIG Function Type: DC Lift Arc
  • TIG Welding Current Range: 20 500A
  • TIG Duty Cycle @ 40 C: 40% @ 500A 60% @ 408A 100% @ 316A
  • TIG Welding Thickness Range: 1 10mm
• MMA SPECIFICATIONS:
  • STICK Welding Current Range: 10 500A
  • STICK Duty Cycle @ 40 C: 40% @ 500A 60% @ 408A 100% @ 316A
  • STICK Electrode Range: 2.5 6.0mm
  • STICK Welding Thickness Range: 2 20mm
• SIZE & WEIGHT
• Dimensions (mm): 1520 x 520 x 980
• Power Source Weight (kg): 30.0
• Separate Wire Feeder Weight (kg): 17.8
• Trolley With Water Cooler Weight (kg): 46.85
• 5 Years warranty
• Made in China

INCLUDES:

• RAZOR SWF 500 Water-Cooled Welder
• 4m M580 Digital Water-Cooled MIG Torch
• 4m Twist Lock Electrode Holder
• 4m 500A Earth Clamp & Lead
• Twin Gauge Argon Regulator
• 1.8m Quick-Connect Gas Hose
• Operating Manual
• 2 x 0.8-0.9mm V Groove Rollers
• 2 x 1.0-1.2mm V Groove Rollers
• 2 x 0.8-0.9mm F Groove Rollers
• 2 x 1.0-1.2mm F Groove Rollers
• 4 x 1.0-1.2mm U Groove Rollers
