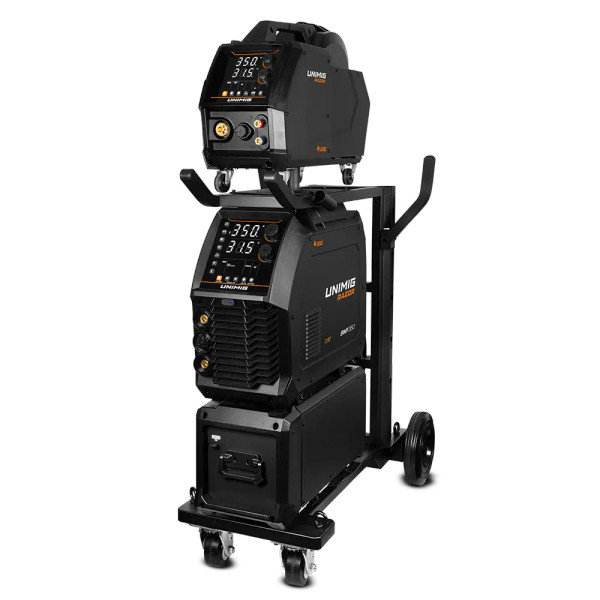

Unimig Razor SWF 350 Welder - U11213

FEATURES:

• A separate wire feeder gives extra manoeuvrability
• Push-Pull gun ready for heavy-duty welding
• 4 geared wire drive system for the smoothest wire feeding experience

SPECS:

• SKU: U11213
• Primary Input Voltage: 415V
• Three-Phase Supply Plug: Unplugged (32A Recommended)
• Ieff (A): 13.9
• Imax (A): 25.0
• Rated Output: 20 350A
• No Load Voltage (V): 75 Protection
• Class: IP23S Insulation
• Class: H Minimum Generator (kVA): 23
• Dinse Connector: 35/50
• Standard: AS 60974.1
• Welds:
  • MIG
  • Mild Steel
  • Stainless Steel
  • Aluminium
  • Silicon Bronze MMA
  • Mild Steel
  • Stainless Steel
  • Cast Iron TIG
  • Mild Steel
  • Stainless Steel
  • Copper
  • Silicon Bronze
• MIG SPECIFICATIONS:
  • MIG Welding Current Range: 30 350A
  • MIG Duty Cycle @ 40 °C: 50% @ 350A 60% @ 319A 100% @ 247A
  • MIG Wire Size Range: 0.6 1.2mm
  • MIG Wire Spool Size: 5kg (200mm), 15kg (300mm)
  • MIG Welding Thickness Range: 1 16mm
  • Drive Roller Size: 37/24
• TIG SPECIFICATIONS:
  • TIG Function Type: DC Lift Arc
  • TIG Welding Current Range: 20 350A
  • TIG Duty Cycle @ 40 °C: 50% @ 350A 60% @ 319A 100% @ 247A
  • TIG Welding Thickness Range: 1 10mm
  • MMA SPECIFICATIONS STICK Welding Current Range: 20 350A
  • STICK Duty Cycle @ 40 °C: 50% @ 350A 60% @ 319A 100% @ 247A
  • STICK Electrode Range: 2.5 4.0mm
  • STICK Welding Thickness Range: 2 16mm
  • SIZE & WEIGHT Dimensions (mm): 1520 x 520 x 980
  • Power Source Weight (kg): 27.21
  • Separate Wire Feeder Weight (kg): 17.8
  • Trolley With Drawer Weight (kg): 43.4
• 5 Years warranty
• Made in China

INCLUDES:

• RAZOR SWF 350 Welder
• 4m M350 Digital MIG Torch
• 4m Twist Lock Electrode Holder
• 4m 500A Earth Clamp & Lead
• Twin Gauge Argon Regulator
• 1.8m Quick-Connect Gas Hose
• Operating Manual
• 2 x 0.8-0.9mm V Groove Rollers
• 2 x 1.0-1.2mm V Groove Rollers
• 2 x 0.8-0.9mm F Groove Rollers
• 2 x 1.0-1.2mm F Groove Rollers
• 4 x 1.0-1.2mm U Groove Rollers
