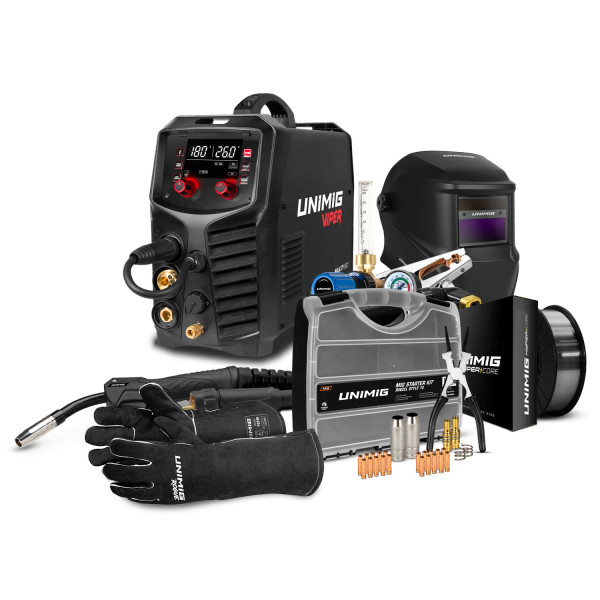

Unimig Viper Multi 180 Welder Bundle- U11717

Features

• Quick and easy setup with Smart-Set MIG programs
• DC Lift Arc Start TIG
• Spool Gun Ready
• Geared Wire Drive
• Job Memory
• IP21S Rating
• Advanced MMA features are designed for improving weld quality and ease of use
• Smart Fan
• Generator Compatible
• Gas-Shielded & Gasless Wires

Specifications

• Technical Data SKU: U11638 Primary Input Voltage: 240V Single-Phase 50/60Hz Supply Plug: 10A Ieff (A): 8.9 Imax (A): 28.8 Rated Output: 20-180A No Load Voltage (V): 67.0 Protection Class: IP21S Insulation Class: H Minimum Generator (kVA): 9 Dinse Connector: 35/50 Standard: AS 60974.1 Welds (MIG): Mild Steel, Stainless Steel, Aluminium, Silicon Bronze Welds (MMA): Mild Steel, Stainless Steel, Cast Iron Welds (TIG): Mild Steel, Stainless Steel, Copper, Silicon Bronze Warranty (Years): 3 MIG Specifications MIG Welding Current Range: 30-180A MIG Duty Cycle @ 40°C: 10% @ 180A, 60% @ 75A, 100% @ 57A MIG Wire Size Range: 0.6-1.0mm MIG Wire Spool Size: 1kg (100mm) / 5kg (200mm) MIG Welding Thickness Range: 1-8mm Drive Roller Size: 30/22 TIG Specifications TIG Function Type: DC Lift Arc TIG TIG Welding Current Range: 20-180A TIG Duty Cycle @ 40°C: 10% @ 180A, 60% @ 75A, 100% @ 57A TIG Welding Thickness Range: 1-6mm MMA Specifications STICK Welding Current Range: 20-160A STICK Duty Cycle @ 40°C: 10% @ 160A, 60% @ 65A, 100% @ 51A STICK Electrode Range: 2.5-4.0mm STICK Welding Thickness Range: 2-10mm Size & Weight Dimensions (mm): 523x214x388mm Weight (kg): 11.1kg
• Country of Origin: China
• Warranty: 36 Months

Inclusions

• VIPER MULTI 180 Welder (U11638) WELDING HELMET ORIGIN SERIES BLACK (U21033) CONSUMABLE STARTER KIT SUIT M15 (UMSK15) HYPERCORE T-11 FLUX-CORED SELF-SHIELDED WIRE 0.9MM 5KG (U11681) ROGUE HEAVY DUTY WELDING GLOVES (UMWG8)
