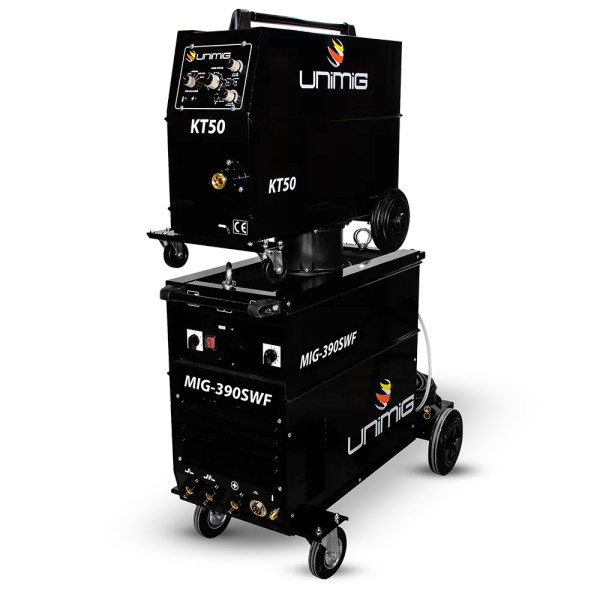

Unimig Workshop 390 SWF MIG Welder - KUM390SWF

Features

• 4 Geared Wire Drive
• 30 Voltage Steps
• Transformer Power
• 10m Separate Wire Feeder Unit

Specifications

• PRIMARY INPUT VOLTAGE: 415V Three Phase SUPPLY PLUG: Three Phase (32 AMP Recommended) RATED INPUT POWER (kVA): 16 Ieff (A): 19 RATED OUTPUT: 30-375A PROTECTION CLASS: IP21 INSULATION CLASS: I MINIMUM GENERATOR (kVA): 19 DINSE CONNECTOR: 35/50 STANDARD: AS/NZ60974-1 WELDS: Mild Steel, Aluminium, Stainless Steel WARRANTY (Years): 3 MIG WELDING CURRENT RANGE: 30-375A "MIG DUTY CYCLE @ 40�C: 40% @ 375A 70% @ 355A 100% @ 300A" MIG WIRE SIZE RANGE: 0.6-2.4mm MIG WIRE SPOOL SIZE: 5kg/15kg MIG WELDING THICKNESS RANGE: 1-20mm DRIVE ROLLER SIZE: 40/32 (x2) DIMENSIONS (mm): 980 x 660 x 460mm WEIGHT (kg): 136kg SWF CONNECTING CABLE LENGTH (m): 10m WIRE DRIVE: Four Geared THERMAL OVERLOAD PROTECTION: Over Temperature Warning
• Made in Hungary
• 36 Months Warranty

Inclusions

• WORKSHOP 390 SWF Welder KT50 SWF Unit 10m interconnecting cables 4m SB36 MIG Torch 10m 500A Earth Clamp & Lead Twin Gauge Argon Regulator 2m Gas Hose Complete with fittings Operating Manual 2x 0.9-1.2mm V Groove Roller
