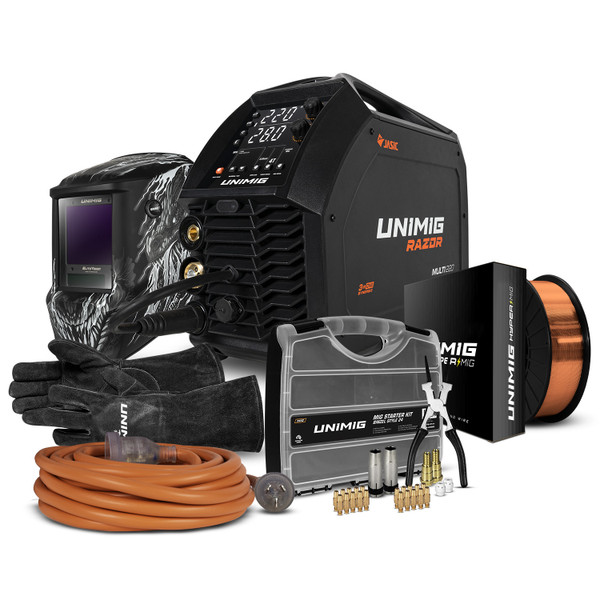

Unimig Razor Multi 220 Bundle - PK11092

Features:

• HD Backlit Interface
• Advanced MMA Features
• Optional Remote Control
• Smart Fan
• Synergic MIG Control
• Digital Control MIG Torch
• Spool Gun Ready
• Gas & Gasless MIG
• Geared Wire Drive
• Multi-Process Welding

Technical Specifications:

• PRIMARY INPUT VOLTAGE: 240V Single Phase
• SUPPLY PLUG: 15 AMP Ieff (A): 14.7
• RATED OUTPUT: 30A/15.5V - 220A/25V
• NO LOAD VOLTAGE (V): 60
• PROTECTION CLASS: IP23S
• INSULATION CLASS: H
• MINIMUM GENERATOR (kVA): 12
• DINSE CONNECTOR: 35/50
• STANDARD: AS/NZ60974-1
• WELDS: MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
• MMA: Mild Steel, Stainless Steel, Cast Iron
• TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
• WARRANTY (Years): 5
• MIG WELDING CURRENT RANGE: 30-220A
• MIG DUTY CYCLE @ 40°C: 15% @ 220A 60% @ 110A 100% @ 85A
• MIG WIRE SIZE RANGE: 0.6-1.2mm
• MIG WIRE SPOOL SIZE: 1kg / 5kg
• MIG WELDING THICKNESS RANGE: 1-10mm
• DRIVE ROLLER SIZE: 30/22
• TIG FUNCTION TYPE: DC Lift Arc
• TIG WELDING CURRENT RANGE: 5-220A
• TIG DUTY CYCLE @ 40°C: 15% @ 220A 60% @ 110A 100% @ 85A
• TIG WELDING THICKNESS RANGE: 1-8mm
• STICK WELDING CURRENT RANGE: 20-180A
• STICK DUTY CYCLE @ 40°C: 15% @ 180A 60% @ 90A 100% @ 70A
• STICK ELECTRODE RANGE: 2.5-4.0mm
• STICK WELDING THICKNESS RANGE: 2-12mm
• DIMENSIONS (mm): 560×220×40 WEIGHT (kg): 15.1
• WIRE DRIVE: Geared VRD: Yes
• SPOOL GUN CONNECTION: Yes
• REMOTE CONTROL CONNECTION: Yes
• FOOT CONTROL CONNECTION: Yes
• BURNBACK ADJUSTMENT: Yes
• INDUCTANCE CONTROL: Yes
• THERMAL OVERLOAD PROTECTION: Over Temperature Warning

Inclusions:

• RAZOR MULTI 220 (U11008K)
• Trade Series Welding Helmet – Dragon (U21027)
• BINZEL 24 Style Consumable Starter Kit (UMSK24)
• 15A 2.5mm Heavy Duty Extension Lead 10m (U51006)
• 0.9mm HYPERMIG ER70S-6 Mild Steel Wire 5kg (MS.9B)
• ROGUE Heavy Duty Welding Gloves (UMWG8)
