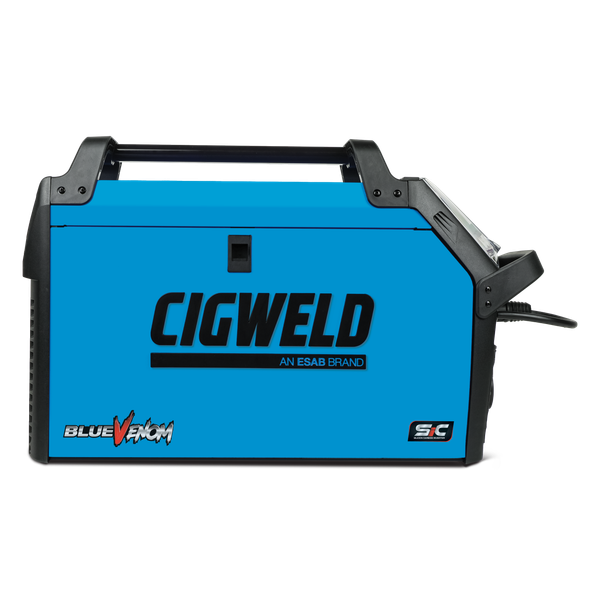

Cigweld BlueVenom SiC XF230⁶ 6in1 Multi Purpose Welder - W1400230

Key features

• MIG DC, Single & Double Pulse: 230A @ 22%
• Stick and Stick with Pulse: 200A @ 25%
• HF AC/DC TIG: 230A @35%
• Plate Thickness Control with Joint Type Selection (Quickset)
• TIG Cold Weld & TIG DC SuperPulse mode
• 4x Feed Roll Geared Wire Drive System
• Plate Thickness Control with Joint Type Selection (Quickset)
• Push-Pull Gun and Spool Gun Compatible
• 200mm and 100mm Spool Compatible
• 100x Memory provisions, 5" LCD Touch Screen Display
• IP23S Coolant Proof, PFC and SiC Technolies

Specifications

• Power Supply Voltage: Single Phase – 15Amp Plug230V +/- 10%
• Australian Standards: AS 60974.1:2020
• Nominal Supply Frequency: 50/60Hz
• MIG Duty Cycle @40%: 230A @ 22%, 24.0V
• Minimum Generator Requirement: 9.5 kVA (0.8 Power Factor at Max Amps)
• Amperage Range: MIG: 30A – 230A TIG: 10A – 230A STICK: 10A – 200A
• MIG Duty Cycle @40%: 230A @ 22%, 24.0V
• TIG Duty Cycle @40% : 230A @ 35%, 22V
• VRD on Stick
• Protection Class: IP23S
• Wire Spool Sizes: 1kg (100mm), 5kg (200mm)

Inclusions

• NEXARC DGX36 3m MIG Gun with 4-Button Control, BZ24 Style
• DimexElite 4m 26F ‘Flex Head’ TIG Torch with Trigger Button and Remote Current Control
• Fitted MIG Consumables and TIG Consumables kit
• 250A Earth Clamp with 3m Lead
• 250A Twist lock Electrode Holder with 3m Lead
• 3m Quick Connect Gas Hose
• 250A Earth Clamp with 3m Lead
• BlueJet Regulator/Flowmeter
• Mild Steel Liner (Fitted), Nylon Liner, Inlet/Outlet Guides
• Feedrolls: 0.8/0.9mm (x2) V-Groove, 0.8/0.9mm (x2) Knurled (Fitted), 1.0/1.2mm (x2) U-Groove
• Operating Manual

Warranty & Returns

• 5 - Years
