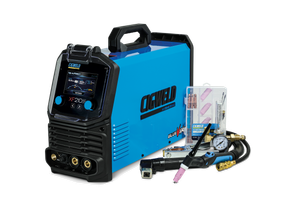

Cigweld BlueVenom SiC XF320 AC/DC TIG Welder - W1300320

Key features

• Lightweight and Powerful: 18.9Kg and 320A
• Stick and Stick with Pulse: 320A @ 100%
• HF AC/DC TIG: 320A @ 100%
• Plate Thickness Control with Joint Type Selection (Quickset)
• 9 different AC Waveforms and AC+DC mode
• TIG Cold Weld & TIG DC SuperPulse mode
• Plate Thickness Control with Joint Type Selection (Quickset)
• Compatible with CoolVenom 4ltr Cooler
• SiC Inverter Tech for the best TIG performance
• IP23S Coolant Proof, PFC and SiC Technolies
• 100x Memory provisions, 5" LCD Touch Screen Display

Specifications

• Power Supply Voltage: Three Phase – 32A Plug 400V +/- 10%
• Australian Standards: AS 60974.1:2020
• Nominal Supply Frequency: 50/60Hz
• TIG Duty Cycle @40% : 320A @ 100%, 18.0V
• Minimum Generator Requirement: 16 kVA (0.8 Power Factor at Max Amps)
• Amperage Range: TIG: 10A – 320A STICK: 10A – 320A
• TIG Duty Cycle @40% : 320A @ 100%, 18.0V
• Stick Duty Cycle @40% : 320A @ 100%, 32.8V
• VRD on Stick
• Protection Class: IP23S

Inclusions

• DimexElite 8m 26F ‘Flex Head’ TIG Torch with Trigger Button and Remote Current Control
• TIG Consumables kit
• 400A Twist lock Electrode Holder with 3m Lead
• BlueJet Regulator/Flowmeter
• 3m Quick Connect Gas Hose
• 300A Earth Clamp with 3m Lead
• BlueJet Regulator/Flowmeter
• Operating Manual

Warranty & Returns

• 5 - Years
