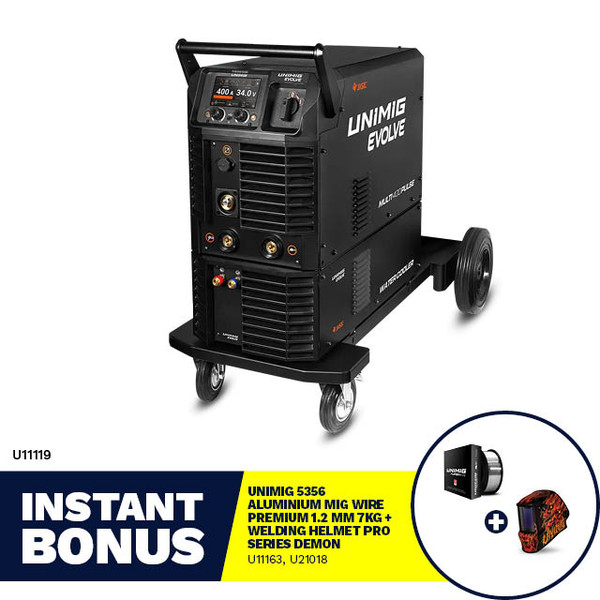

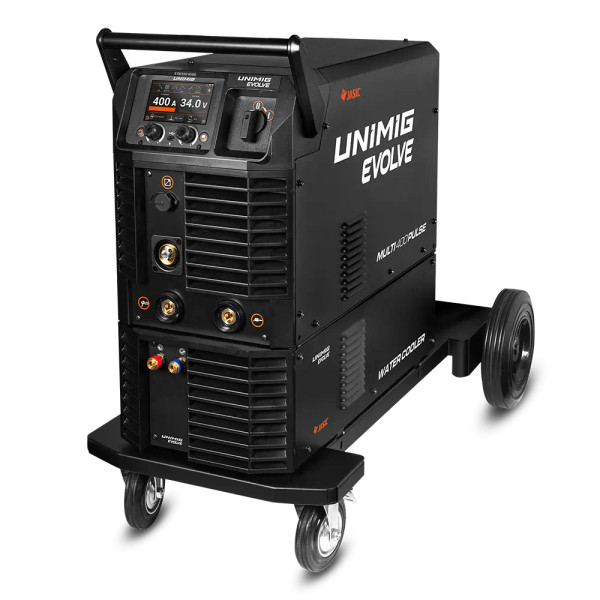

Unimig Evolve Multi 400 Welder - U11119

Features

• SINGLE & DOUBLE PULSE MIG
• 100+ SYNERGIC PROGRAMS
• 5” LCD TOUCH SCREEN
• DIGITAL MIG TORCH
• Power Factor Correction
• IP23S
• 4 Geared Wire Drive
• Push-Pull Gun Ready

Specifications

• PRIMARY INPUT VOLTAGE: 240V Single-Phase / 415V Three-Phase
• SUPPLY PLUG: 32A
• Ieff (A): 14.4A (240V Single-Phase) / 18.3A (415V Three-Phase)
• RATED OUTPUT: 20A-250A (240V Single-Phase) / 20A-400A (415V Three-Phase)
• NO LOAD VOLTAGE (V): 70
• PROTECTION CLASS: IP23S
• INSULATION CLASS: H
• MINIMUM GENERATOR (kVA): 13kVA (240V Single-Phase) / 23kVA (415V Three-Phase)
• DINSE CONNECTOR: 35/50
• STANDARD: AS 60974.1
• SUITABLE MATERIAL MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze MMA: Mild Steel, Stainless Steel, Cast Iron
• MIG WELDING CURRENT RANGE: 20A-250A (240V Single-Phase) / 20A-400A (415V Three-Phase)
• MIG DUTY CYCLE @ 40°C: 20% @ 250A, 60% @ 144A, 100% @ 112A (240V Single-Phase) / 60% @ 400A, 100% @ 310A (415V Three-Phase)
• MIG WIRE SIZE RANGE: 0.6-1.6mm
• MIG WIRE SPOOL SIZE: 5kg (200mm) / 15kg (300mm)
• MIG WELDING THICKNESS RANGE: 0.6-20mm (Single Pass) / >20mm (Multi Pass)
• DRIVE ROLLER SIZE: 30/22 (x2)
• STICK WELDING CURRENT RANGE: 20A-225A (240V Single-Phase) / 20A-400A (415V Three-Phase
• STICK DUTY CYCLE @ 40°C: 20% @ 225A, 60% @ 130A, 100% @ 100A (240V Single-Phase ) / 60% @ 400A, 100% @ 310A (415V Three-Phase)
• STICK ELECTRODE RANGE:1.6-6.0mm
• STICK WELDING THICKNESS RANGE: 2-10mm (Single Pass) / >10mm (Multi Pass)
• Warranty: 5 years
• Made In China
